GMS “RAIDER” S905R Military Low Cost, Rugged, Small, Dual/Quad Core™ i7 System with Removable Drive

0 out of 5

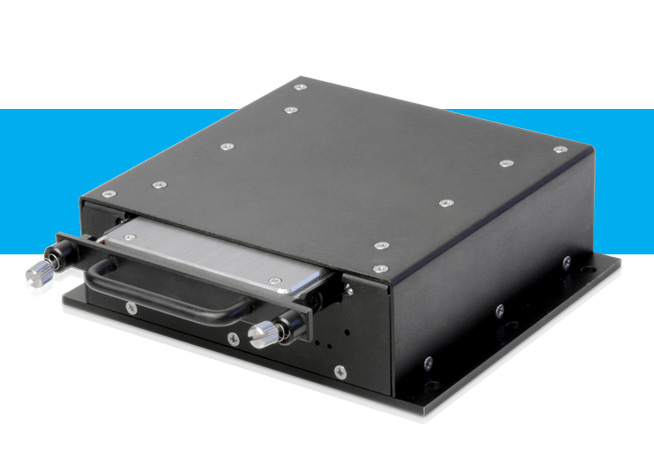

The S905R Raider III is a fourth generation, rugged, small, lightweight computer system. It is designed to provide the highest level of workstation performance possible in a fully ruggedized, conduction cooled, fully sealed system that operates over a full -40° C to +85° C. The Raider III is targeted for applications where a rugged computer is needed to provide the best possible performance per dollar per watt, utilizing hi-density, low cost rugged interconnects to provide an easy interconnect to system I/O and user I/O.

The Raider III supports the latest Intel® i7 Core™ processor with up to four physical CPU cores, Hyperthreading for a total of eight logical cores, each operating at up to 2.5GHz and the ability to TurboBoost. To harvest this incredible CPU performance, the CPU is coupled with up to 16GB of SDRAM organized in two banks supporting error correcting code (ECC). The ECC RAM provides two bits error detection and one bit error correction and supports up to 1600 mega-transfers per second (MTS) between CPU and memory.
SKU: S905R. Categories: , , , .
Request a Quote

Description

Product Specifications

Computing Features
– Up to 2.5GHz Dual Core i7® processor with 6MB of L2 Cache
– Up to 2.3GHz Quad Core i7® processor with 6MB of L2 Cache
– Up to 16GB of 1600/1333MHz DDR-3 memory with ECC
– Support for a fixed drive or one/four removable 2.5” SATA SSD/HDD up to 1TB
– Optional removable SSD cartridge with ultra-high Mating Cycle up to 512GB

– mSATA Flash for OS Boot with secure erase and write protect up to 512GB (optional)

System I/O
– Support for up to three SAM™ sites for custom I/O
– Up to five GigE ports with TCP/IP Offloading Engine (TOE)
– Up to five USB 2.0 ports
– Up to four Serial ports with RS-232/422/485 options
– Dual DVI/HDMI ports and one RGB video port
– One NTSC/PAL Composite Video out (optional)
– Eight buffered General Purpose I/O lines

– Full HD-Audio support with onboard 1W mono amplifier

Additional Features
– Trusted Platform Module (TPM) (optional)
– Trusted Execution Technology (TXT) for secure system operation (optional)
– Supports Intel Virtualization Technology (VT-x/VT-D2) for best performance
– Full power management control for Sleep/Hibernate operation
– CPU temperature and voltage monitoring for safe operation
– Reset and power On/Off switch with suspend support
– Pass/Fail, Power Good and user LED indicators
– Support for Windows®, Linux® and VMware®

SWap
– Ultra small and lightweight at 5.5” x 5.5” x 1.24” and under 1.9 lbs.

– Ultra low power requirements as low as 25W total
