Description
Our advanced Zio® Networked AV platform includes comprehensive video wall capabilities making it the latest addition to RGB Spectrum’s extensive choice of display wall processors. Zio encoders allow signals up to 4K UHD to be encoded, sent across a standard IP network, and decoded for display in a window on the video wall. From a simple 2×2 wall array in a lobby to multiple walls across a corporate campus, the Zio wall processor family provides the flexibility required for any video wall application.
Related ProductsNetworked AV
RGB Spectrum’s Zio™ encoder and decoder technology offers video and audio distribution over an IP network. Zio endpoints are integrated with RGB Spectrum’s wall processors for multi-screen display, providing streaming inputs to the wall and streaming video wall content to other destinations. |

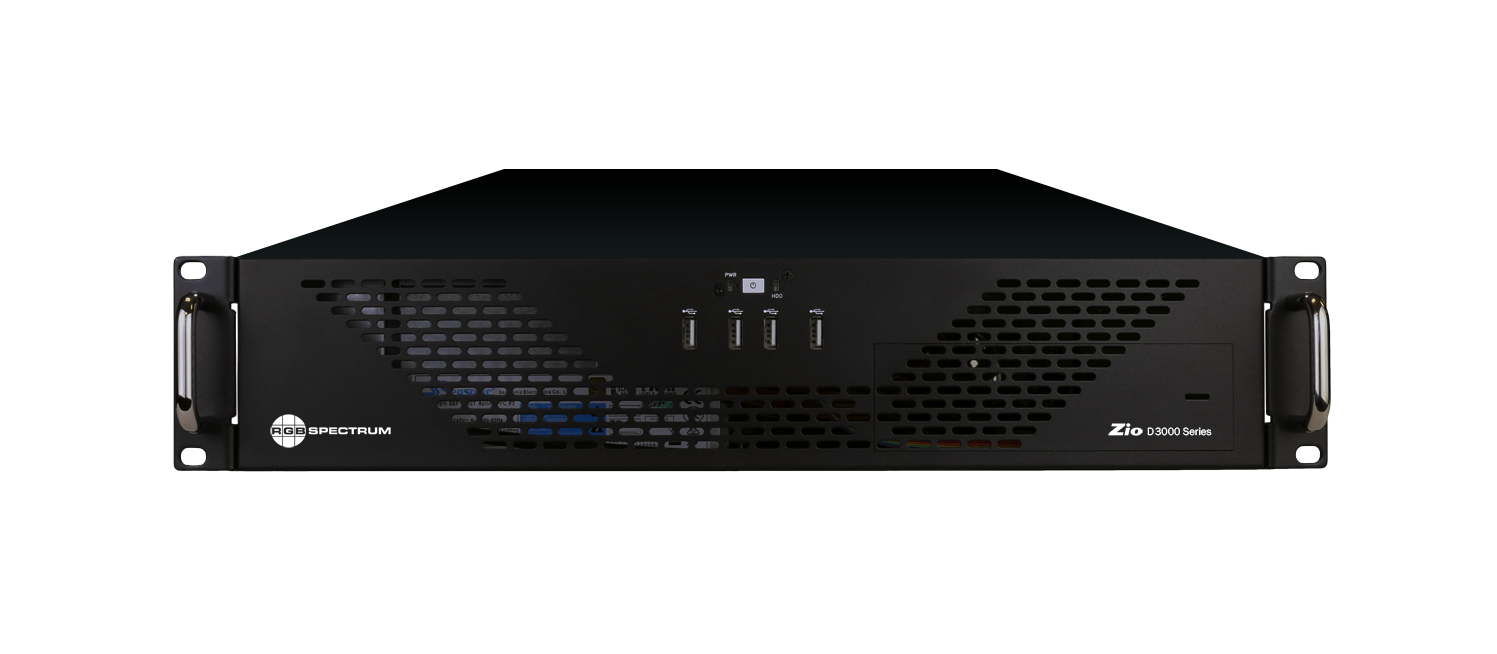

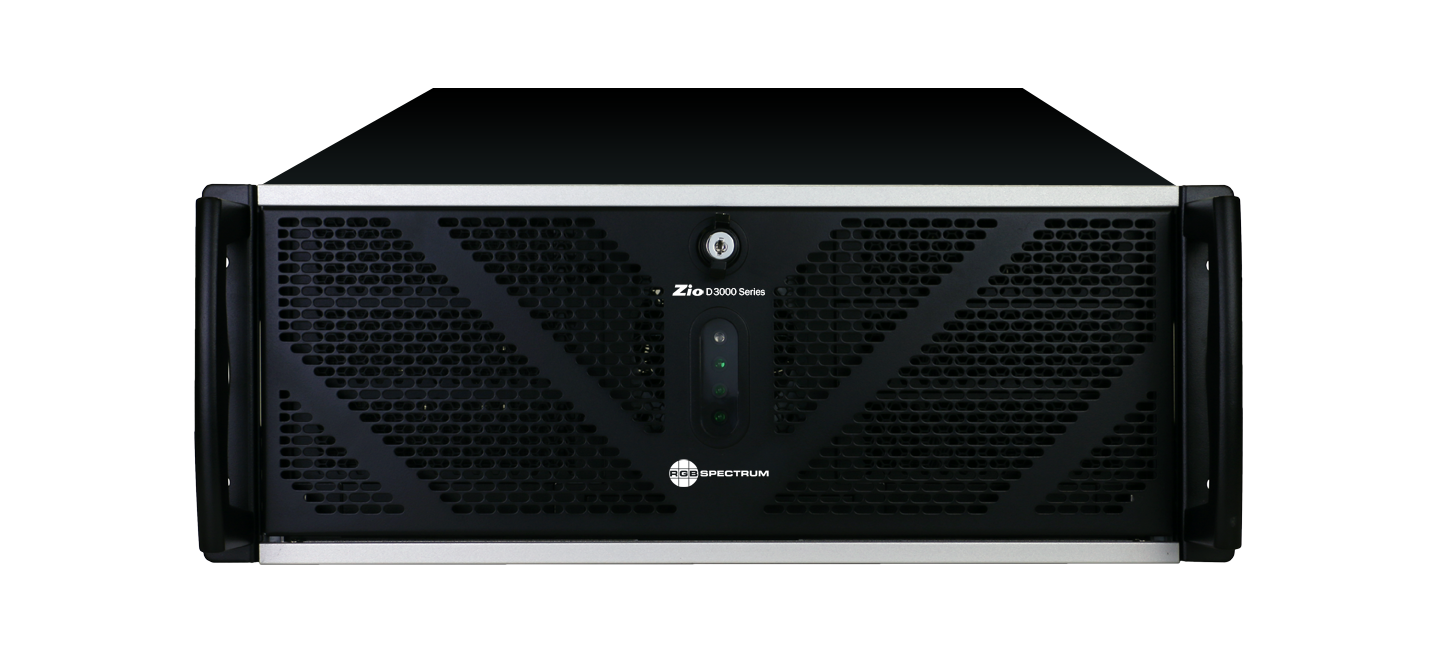

D3000 and D3100 Series Wall Processors |
Video Stream Input |
||
| Connector Type | 1x RJ-45 (GigE) | |
| Stream Resolution | Model 3062: up to 1920 x 1080 @ 60 Hz Other models: up to 1920 x 1080 @ 60 Hz, 3840 x 2160 @ 30 Hz |
|
Display Output |
||
| Connector Type | Model D3062: 4x mini-DisplayPort Model D3164: 4x DisplayPort Model D3174: 8x DisplayPort Model D3184: 12x DisplayPort Model D3194: 16x DisplayPort |
|
| Display Resolution | up to 1920 x 1080 @ 60 Hz, 3840 x 2160 @ 30 Hz, 4096 x 2160 @ 24 Hz | |
| Audio Support | Digital (embedded HDMI) or Analog (mono) | |
| Simultaneous Streams Displayed | Model D3062: 4x 1080p streams, or equivalent Other models: 10x 1080p streams; 2x 4K streams, or equivalent |
|
| Control | ||
| Application | Browser-based HTML5: Windows, macOS, iOS and Android | |
| Serial | RS-232, 9600-115,200 baud | |
| Network | Ethernet TCP/IP 10/100/1000Base-T | |
| USB | 1x USB-3 | |
| Streaming | ||
| Compression Format | H.264, H.265 | |
| Streaming Protocol | RTSP | |
| Physical | ||
| Size (h x w x d) | Model D3062 & D3164: 3.5 x 16.75 x 20.9 inches, 88 x 426 x 531 mm (2RU) Other models: 6.9 x 16.9 x 21.5 inches, 175 x 429 x 546 mm (4RU) |
|
| Weight | Model D3062 & D3164: 22.2 lbs (10.1 kg) Other models: 39.8 lbs (18.0 kg) |
|
| Power | Model D3062 & D3164: 250 W max Other models: 450 W max |
|
Environmental
|
||
| Operating Temperature | +41 to +104 °F (5 to +40 °C) | |
| Storage Temperature | -4 to +158 °F (-20 to +70 °C) | |
| Operating Humidity | 5% to 90% non-condensing | |
| Altitude | Up to 13,123 ft (4000 m) at 104°F (40°C) |
