Diamond Aries PC/104-Plus SBC with Intel E3800 CPU & On-Board Data Acquisition

0 out of 5

The Best PC/104 Bay Trail SBC in the World

  • 91GHz Intel quad core E3845 or 1.46GHz dual core E3826 Bay Trail CPU
  • 2GB or 4GB 64-bit DDR3 SDRAM soldered on board
  • I/O Support: 3 USB 2.0 ports, 1 USB 3.0 port, 4 RS-232/422/485 ports with programmable protocol and line termination, 2 10/100/1000Mbps Ethernet ports, 1 SATA port for disk-on-module or external drive, 24-bit LVDS LCD display and VGA CRT, DisplayPort or HDMI with dual independent display, HD audio, Shared expansion socket auto-selects for either PCIe MiniCard or mSATA flashdisk modules
  • Data Acquisition: 16 16-bit analog inputs, 250KHz max sample rate, 4 16-bit analog outputs with waveform generator, 22 digital I/O lines with programmable direction, 8 counter/timers, 4 PWMs
  • PC/104-Plus and PCIe MiniCard expansion capability
  • PC/104-Plus extended form factor (4.5” x 4.0”)
  • Extremely rugged with soldered RAM and -40°C to +85°C (-40°F to +185°F) operating temperature
Request a Quote

Description

Aries PC104-Plus single board Embedded Bay Trail E3800 series

The Aries PC/104-Plus single board computer uses the Intel “Bay Trail” E3800 series processor to deliver an unmatched combination of performance, price and power consumption. Packed with real-world features, Aries provides a complete solution for most embedded applications in a single board, saving you space, time, and money. Aries provides rugged performance along with a professional-quality data acquisition circuit supported by industry-leading software. The full rectangular shape of Aries provides more PCB area and coastline to support the extreme level of I/O offered by the board.

  Features

  • 91GHz Intel quad core E3845 or
  • 46GHz Intel dual core E3826 CPU
  • 2GB or 4GB on-board 64-bit DDR3 SDRAM
  • I/O connectors for a wide range of interfaces:
    • 2 Gigabit Ethernet ports
    • 1 SATA port
    • 3 USB 2.0 & 1 USB 3.0 ports
    • 4 RS-232/422/485 serial ports
    • VGA, LVDS, DisplayPort or HDMI video output
    • HD Audio
  • On-board data acquisition circuit:
    • 16 16-bit analog inputs
    • 4 16-bit analog outputs
    • 22 digital I/O lines
    • PWMs
    • Counter/timers
  • Waveform generator
  • On-board mSATA flashdisk socket supports up to 64GB
  • Watchdog timer
  • +5VDC input power
  • System expansion:
    • PC/104-Plus stackable I/O
    • PCIe MiniCard socket
  • PC/104-Plus form factor
  • Operating temperature range of -40°C to +85°C

Description

The Aries PC/104-Plus single board computer from Diamond Systems uses the Intel “Bay Trail” E3800 series processor to deliver an unmatched combination of performance, price and power consumption. Packed with real-world features, Aries provides a complete solution for most embedded applications in a single board, saving you space, time, and money.

  I/O Features

Aries PC/104-<i>Plus</i> SBCAries incorporates a perfect combination of highly advanced I/O features, including 3 USB 2.0 ports and 1 USB 3.0 port, 4 programmable RS-232/422/485 ports, 2 10/100/1000Mbps Ethernet ports, and 2 SATA ports.

A multi-use MiniCard socket auto-selects for either a PCIe MiniCard or mSATA flashdisk. This dual function socket can be used to add compact additional I/O or mass storage to your system. The dedicated SATA connector can be used with off-board SATA devices and also supports use of a board-mounted miniature SATA disk-on-module for a smaller overall system envelope with less cables.

Aries provides 4 RS-232/422/485 ports using multiprotocol transceivers, one per port. All configuration features are fully programmable as well as configurable in the BIOS screens, including protocol and line termination for RS-422/485. In RS-422 mode, both half duplex and full duplex line termination can be selected.

Aries supports two 10/100/1000 high speed Gigabit Ethernet ports derived from Intel I210IT PCIe Gigabit Ethernet controllers. A latching connector is used to bring these ports off board instead of RJ-45 jacks, optimizing space on the board and increasing ruggedness. Activity status of the Ethernet ports can be read from LEDs.

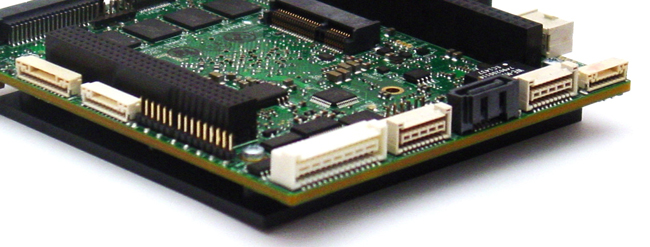

Aries includes miniature rugged latching connectors for most I/O, including LVDS LCD, as shown in the photo below. Latching connectors improve the ruggedness of the SBC, enhancing Aries’ performance in harsh environments.

  Rugged Features

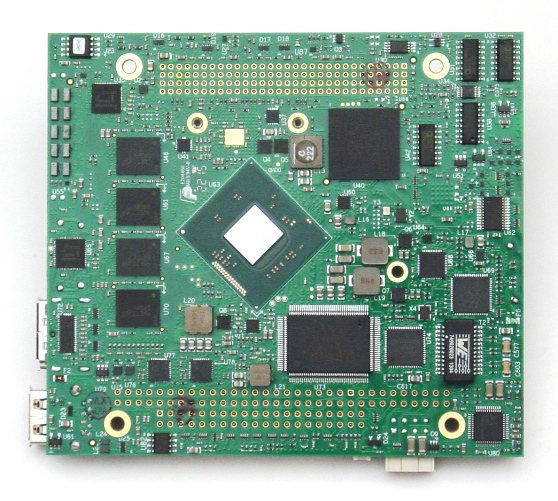

Aries PC/104-<i>Plus</i> SBCThe Aries family includes a full set of rugged design features to enable reliable use in vehicle, wide temperature, high vibration, and other harsh environments:

  • Aries is designed and built with industrial range temperature components and wide temperature design considerations. The board has been tested and qualified for use in temperatures ranging from -40°C to +85°C. All models feature wide temperature operation off the shelf with no pre-screening required.
  • A thicker PCB of 2.4mm (shown above) increases rigidity and enhances long-term reliability.
  • All I/O connectors, except HDMI, DisplayPort, and USB 3.0, provide positive locking connections for confident performance in vehicle or other high vibration environments.
  • Aries is compatible with MIL-STD-202-G shock and vibration test requirements.
  • The system memory is soldered on board for increased ruggedness, eliminating potential failures often associated with SO-DIMM sockets and improving high temperature reliability.
  • Aries PC/104-<i>Plus</i> SBC with heatsinkFor custom configurations, all jumpers can be replaced with 0 ohm resistors soldered into dedicated locations on the board. In addition, the number of jumpers has been reduced by offering software configuration of all serial port features.
  • Aries can operate over the full industrial temperature range of -40°C to +85°C without a fan, due to its use of an integrated bottom-mounted heat spreader for effective cooling. The heat spreader contacts the bottom-mounted processor, memory, and other key heat producing components and provides efficient heat transfer from these ICs to the mounting surface (enclosure wall). A traditional 0.5″ high heat sink accessory is available for applications that require a non-contact installation method.

Data Acquisition

Aries is available with a complete analog and digital data acquisition (DAQ) circuit integrated onto the board. The features of the Aries DAQ circuit surpass those found on most other embedded SBCs to provide a comprehensive, professional quality subsystem backed with top of the line software support. “A” models include the full DAQ circuit with both analog and digital I/O features, while “N” models include only the digital I/O features.

Specifications

Core System Functions
Processor 1.91GHz Intel quad core E3845 CPU or
1.46GHz Intel dual core E3826 CPU
Memory 2GB or 4GB on-board DDR3 SDRAM
BIOS AMI PnP Flash BIOS
I/O Interfaces
Mass Storage 1 SATA port, supports 1 external device or SATA-DOM
mSATA flashdisk socket supports up to 64GB
Serial 4 RS-232/422/485 ports
USB 3 USB 2.0 ports & 1 USB 3.0 port
Networking 2 Gigabit Ethernet ports
Keyboard/Mouse USB keyboard/mouse
Display Dual independent displays for any two of the following:
24-bit LVDS LCD flat panel interface
VGA CRT interface
DisplayPort or HDMI (cannot be used simultaneously)
Display Resolution VGA, LVDS & DisplayPort: 2560 x 1600 maximum resolution
HDMI: 1920 x 1080 maximum resolution
Audio ALC892 Codec HD audio with stereo line-out, line-in & microphone
Watchdog timer Programmable timeout from 0 to 255 seconds
Data Acquisition Features
Analog Inputs 16 single-ended or 8 differential, user selectable
A/D Resolution 16 bits
Input ranges ±10V, ±5V, ±2.5V, ±1.25V, 0-10V, 0-5V, 0-2.5V programmable
Max Sample Rate 250KHz
Protection ±35V on any analog input without damage
Nonlinearity ±3LSB, no missing codes
On-board FIFO 2048 samples, programmable threshold
A/D and D/A Calibration Autocalibration with software support
Analog Outputs 4, 16-bit resolution
Output ranges ±5V, ±10V, 0-5V, 0-10V programmable
Input impedance 10^13 ohms
Output current ±5mA max per channel
Settling time 10µS max to 0.012%
Relative accuracy ±2 LSB
Nonlinearity ±2 LSB, monotonic
Reset Reset to zero-scale or mid-scale (jumper selectable)
Digital I/O lines 22 programmable direction consisting of 1 8-bit port and 14 1-bit ports
Input voltage Logic 0: 0V min, 0.8V max
Logic 1: 2.0V min, 5.5V max
Input current 1µA at 3.3V, -5µA at 0V
Output voltage Logic 0: 0.0V min, 0.55V max
Logic 1: 2.0V min, 3.3V max
Output current Logic 0: 64mA max at 0.55V
Logic 1: 32mA max at 2V
Waveform generator 4 channel, 2048 x 18-bit buffer
Pulse width modulators 4 24-bit programmable
Counter/timers 8 32-bit
Expansion Buses
PC/104-Plus (ISA + PCI) stackable I/O
PCIe MiniCard 1 socket
Physical and Mechanical
Power Input +5VDC +-5%
Power Consumption E3845 CPU: 8.5W
E3826 CPU: 8.0W
Operating Temperature -40ºC to +85ºC (-40ºF to +185ºF)
Operating Humidity 0-90% non-condensing
Shock MIL-STD-202G compatible
Vibration MIL-STD-202G compatible
Form Factor PC/104-Plus
Dimensions 4.5 x 4.0 in. (114 x 102 mm)
Weight 8.6 oz (243.8g) with heat spreader
MTBF 150,240 hours at 20ºC
RoHS Compliant

  Get An Online Quote

Aries PC/104-Plus SBC
available models:
ARS3845-4GA
Aries SBC, 1.91GHz E3845 CPU, 4GB DDR3 SDRAM, analog I/O & digital I/O
ARS3845-4GN
Aries SBC, 1.91GHz E3845 CPU, 4GB DDR3 SDRAM, digital I/O
ARS3826-2GA
Aries SBC, 1.46GHz E3826 CPU, 2GB DDR3 SDRAM, analog I/O & digital I/O
ARS3826-2GN
Aries SBC, 1.46GHz E3826 CPU, 2GB DDR3 SDRAM, digital I/O
DK-ARS-WE7
Aries Development Kit with ARS3845-4GA SBC, cables and Windows Embedded 7 OS
DK-ARS-LNX
Aries Development Kit with ARS3845-4GA SBC, cables and Linux OS
SDK-ARS-WE7
Aries Windows Embedded 7 Software Development Kit
SDK-ARS-LNX
Aries Linux Software Development Kit
CK-ARS-01
Aries Cable Kit
ACC-HS104-12.7
Heat Sink Accessory

Please click for an online quote request.

Cables and accessories
available models:
FDSM-64G-XT
SATA DOM MLC Flashdisk, 64GB, extended temperature
FDSM-32G-XT
SATA DOM MLC Flashdisk, 32GB, extended temperature
FDMS-8G-XT
mSATA SLC Flashdisk, 8GB, extended temperature
FDSS-64G-XT
SATA DOM SLC Flashdisk, 64GB, extended temperature
FDSS-32G-XT
SATA DOM SLC Flashdisk, 32GB, extended temperature
FDMM-64G-XT
mSATA MLC Flashdisk, 64GB, extended temperature
FDMM-32G-XT
mSATA MLC Flashdisk, 32GB, extended temperature
FDMM-16G-XT
mSATA MLC Flashdisk, 16GB, extended temperature
FDMS-64G-XT
mSATA SLC Flashdisk, 64GB, extended temperature
FDMS-32G-XT
mSATA SLC Flashdisk, 32GB, extended temperature
FDMS-16G-XT
mSATA SLC Flashdisk, 16GB, extended temperature

Please click for an online quote request.
