Diamond Hercules EBX CPU, 400/128, w/DAQ DYHRC400-5A128

0 out of 5

Hercules introduces a new level of integration in EBX format CPU boards. Combining processor, data acquisition, and power supply onto one board results in a thinner, lighter, more rugged, and easier to assemble embedded system. This 3-in-1 design addresses the needs of mobile and vehicle applications by offering the benefits of reduced size, weight, cost, and power consumption. The Hercules CPU design is based on the VIA Eden processor chipset, featuring Pentium III class performance with dramatically reduced power consumption. For example 550MHz board consumes only 12 watts max and requires only a small heat sink with no fan to operate at temperatures up to 85oC. The 750MHz version consumes 16 watts and uses a small cooling fan. The advanced data acquisition circuit features auto-calibration and fully jumper-less configuration feature for maximum accuracy and reliable performance. The built-in DC/DC power supple.



Request a Quote

Description

Description

Hercules introduces a new level of integration in EBX format CPU boards. Combining processor, data acquisition, and power supply onto one board results in a thinner, lighter, more rugged, and easier to assemble embedded system. This 3-in-1 design addresses the needs of mobile and vehicle applications by offering the benefits of reduced size, weight, cost, and power consumption. The Hercules CPU design is based on the VIA Eden processor chipset, featuring Pentium III class performance with dramatically reduced power consumption. For example 550MHz board consumes only 12 watts max and requires only a small heat sink with no fan to operate at temperatures up to 85oC. The 750MHz version consumes 16 watts and uses a small cooling fan. The advanced data acquisition circuit features autocalibration and fully jumperless configuration feature for maximum accuracy and reliable performance. The built-in DC/DC power supply enables Hercules to be used in a wide range of applications without requiring a separate add-on supply.

Features Benefits
Low-power VIA Eden processor High computing power with reduced power consumption
Fanless operation (550MHz)
Memory soldered on board Increased reliability and ruggedness
Guaranteed compatibility
Integrated LCD, CRT, Ethernet, and system I/O Complete PC on a single board
On-board DC/DC power supply Suitable for vehicle applications
Reduced size and weight
Integrated data acquisition circuit with autocalibration Single-board solution for increased reliability
Increased measurement accuracy
-40/+85ºC operation Compatible with vehicle and outdoor applications
Ruggedization capability Customizable for harsh environment applications

Built-In Power Supply

Hercules contains a DC/DC power supply with 40 watts of output power, enough to power the CPU as well as peripherals and add-on boards. The standard input range of 5-28VDC means that Hercules is compatible with a standard off-the-shelf 5V supply as well as a vehicle, battery, or industrial power source. An optional 20-48VDC input range is also available. The on-board supply features ACPI compatibility for intelligent power management.

Advanced Multimedia Features

Hercules contains an integrated S3 ProSavage 4 video circuit. This advanced design provides hardware 2D and 3D acceleration with 32MB video buffer using shared system memory, 128-bit engine architecture, full internal AGP 4x performance, 3DNow! and MMX instruction sets, and high-quality DVD video playback. The video circuit supports CRTs up to 1920×1440 and LVDS LCD panels up to 1400×1050 resolution. Simultaneous CRT and LCD display is supported. Integrated TV-out can produce simultaneous Composite and S-Video out, NTSC or PAL encoding. Audio features include an integrated AC97 digital audio controller and codec. A built-in Hi-Fi stereo speaker amplifier provides 2 watts per channel output power and ultra low-noise sound (SNR > 87dB). Audio I/O signals include Mic in, CD in, Aux in, Line in / Line out, and speaker out. Speaker out is also equipped with DC volume level control for ease of integration. Diamond Hercules EBX CPU



top

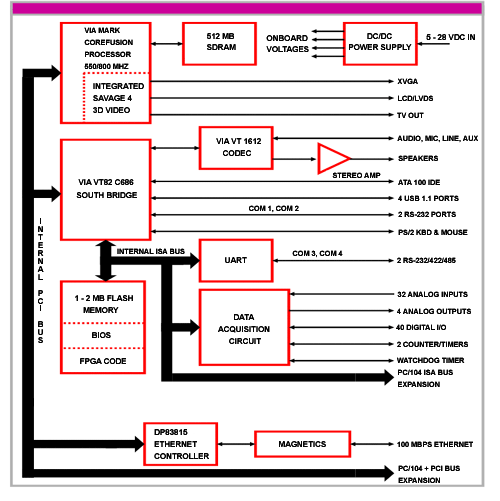

Hercules II Block Diagram
Hercules II Block Diagram
top
Data Acquisition Circuit

Hercules II includes a complete autocalibrating jumper-less analog and digital I/O circuit equivalent to our top-of-the-line PC/104 board. It contains 32 analog inputs with 16-bit resolution and 250KHz sample rate, backed by a 2K-sample FIFO with programmable threshold. Programmable input ranges from a wide-range +/-10V down to 0-1.25V are provided. The analog circuitry also includes 4 D/A channels with 12-bit resolution and jumperless output range selection and simultaneous update capability. On the digital side, Hercules II provides 40 digital I/O lines with programmable direction, as well as two counter/timers for A/D sample rate control, pulse counting, frequency generation, or other applications. Its advanced control logic has more features and flexibility to fit almost any application, such as internal/external A/D clock source, scan and single-sample modes, and our exclusive programmable FIFO threshold that lets you tune the board’s performance to your application. Also four independent programmable Pulse-Width Modulation outputs (PWM) are available to users. The data acquisition circuit is fully supported by our Universal Driver software for a wide range of operating systems.

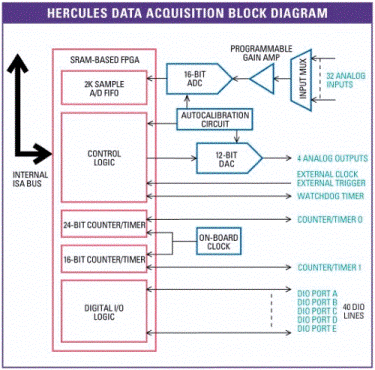

Hercules II Data Acquisition Circuit Block Diagram
Development Kit (DK-HRCEBX-02)

A development kit is available with everything you need to get started on your Hercules II embedded design project. The kit contains a data acquisition test board, flashdisk module, cable kit, AC power adapter, USB floppy drive, and software CD.
