Description
|
The innovative Galileo Display Processor is a powerful and economical video wall system with remote desktop capabilities designed around a PC-based architecture. The video wall processor adds the benefits of PC-based systems, such as IP inputs and the ability to run applications natively, to the 24/7 level of reliability and real-time performance of all of RGB Spectrum’s solutions. The video wall system supports a full range of input and output types (IP, analog, DVI/HDMI, 3G/HD-SDI). This PC-based video wall processor can also deliver HDCP protected content.Optimized components enable the Galileo video wall system to deliver real-time throughput and superb image quality, unlike other PC-based systems that can drop frames or cause image tearing. The processor’s solid state drive and dual-redundant power supplies add an extra level of reliability. This IP-enabled video wall processor supports H.264 IP decodes for motion video. In addition, our exclusive VDA remote desktop technology with integrated KVM over IP capabilities provides operators with low-latency control over remote systems via a LAN or WAN. VDA remote desktop performance is demonstrably superior to the industry standard VNC, particularly at low bandwidth or with high motion graphics and video. The video wall system is easy to set-up and control. The Galileo processor’s advanced GUI allows users to “drag and drop” inputs and applications, such as VMS, SCADA and videoconferencing, to the video wall. A convenient tablet interface is also available. In addition, an API allows operators to monitor remote alarms and create advanced scripts to recall layouts and control third-party equipment. The Galileo processor is ideal for a range of video wall system applications including mission-critical operations centers, command centers and control rooms, as well as boardroom video walls, corporate lobby displays, and large-scale digital signage. Combining enhanced reliability with the flexibility of a PC system, the new IP-enabled Galileo display processor is a PC video wall done right. |
 Galileo GO 16 : Front Panel
 Galileo GO 40 / 56-Front Panel
|

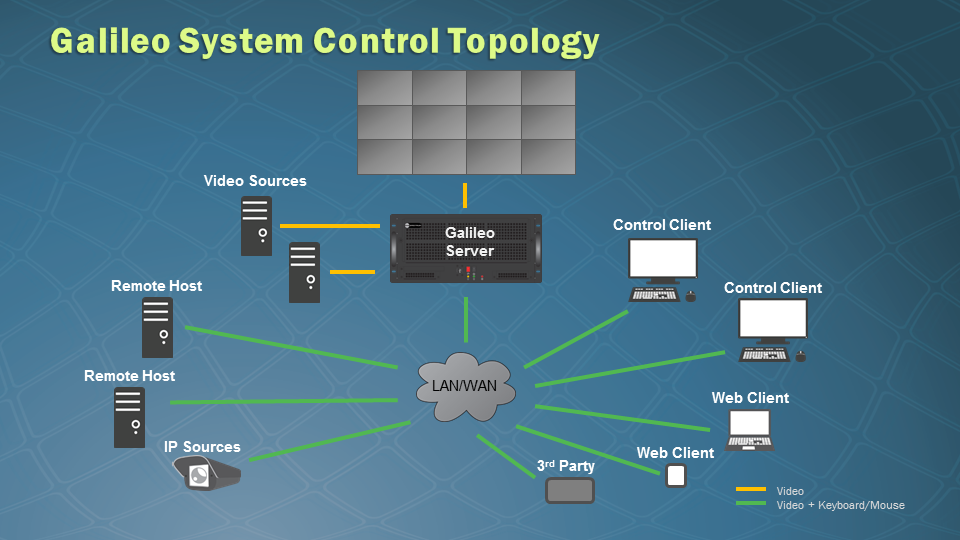

 View the Galileo System Topology Video
|
Model GO 56 |
Physical |
||
|
Size (H x W x D)
|
7.0 x 19.0 x 26.0 inches (4RU) 177 x 483 x 657 mm |
|
| Weight | 57 lbs/26 kg | |
Power |
||
| Power Supply | 115-230 VAC; 50/60 Hz, 810 W max Dual redundant |
|
| Power consumption depends on specific configuration. | ||
Environmental |
||
| Operating Temp. | +32 to +104 °F (0 to +40 °C) | |
| Storage Temp. | -4 to +140 °F (-20 to +60 °C) | |
| Operating Humidity | 10% to 85%, non-condensing | |
| Processor | ||
|
CPU
|
Single Intel® Quad Core™ i7 | |
| Memory | 8 GB, DDR3 | |
| Hard Disk | 500 GB SSD; RAID option | |
| Control | ||
| Network | 2x Ethernet TCP/IP 10/100/1000Base-T |
|
I/O
|
||
| Inputs | DVI: up to 1920×1200 @ 60Hz, 2560×1600 @ 30Hz HDMI: up to 4096×2160 @ 60 Hz S-Video: NTSC/PAL/SECAM Composite: NTSC/PAL/SECAM SDI: 1920×1080 @ 60Hz IP: up to 12x 1920×1080 @ 30 Hz or 1x 3840×2160 @ 60 Hz or other equivalent data rate via each GO IP4K card IP: up to 9 simultaneous 1920×1080 @ 30 Hz streams or other equivalent data rate via chassis CPU |
|
| Output Type | DVI/HDMI 1.3: up to 2048×1152 @ 60Hz, 2560×1600 @ 30Hz | |
| Output Number | 56 max | |
| Number of input and output channels depends on chassis size and customer configuration. |
