Description

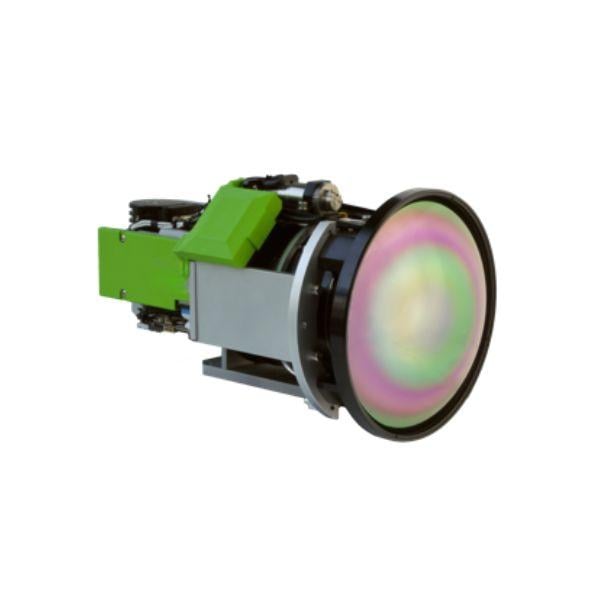

NoxCore TRIF360LW for Long Range Surveillance
The NoxCore TRIF360LW is purpose-built for high-performance surveillance and tracking in demanding environments. Designed to operate in the long wave infrared spectrum, this trifocal camera core provides exceptional detection and recognition capabilities, even in low visibility conditions such as darkness, fog, or smoke.
Powered by the latest NoxEngine technology, the NoxCore TRIF360LW ensures outstanding image clarity and advanced video processing. Its trifocal functionality enables seamless switching between different focal lengths, allowing operators to monitor wide areas and zoom in on critical details with precision. This flexibility makes it an ideal choice for border surveillance, maritime monitoring, and defense applications.
High Performance Thermal Imaging
At the heart of the NoxCore TRIF360LW is a cooled LWIR detector that delivers consistent and accurate thermal imaging performance. The rotary Stirling cooling system ensures stable operation while maintaining low noise levels and high sensitivity. This results in reliable detection of targets over long distances, enhancing situational awareness and operational efficiency.
The compact design and low power consumption make this camera core suitable for integration into various platforms, including mobile systems, unmanned vehicles, and fixed installations. Its durability ensures reliable performance even under challenging environmental conditions, including vibration and shock.
Seamless Integration
Integration is simplified with the NoxCore TRIF360LW, thanks to its support for multiple video output formats and communication interfaces. It offers HDMI output with optional SDI or analog configurations, along with GigE Vision streaming and Ethernet-based control. These features allow easy compatibility with modern surveillance and monitoring systems.
With its robust design, advanced imaging capabilities, and flexible configuration options, the NoxCore TRIF360LW stands out as a dependable solution for professionals seeking high-quality infrared imaging and tracking performance.
Technical Specifications
| Parameter | Specification |
| Spectral Range | 7.7 µm to 9 µm (LWIR) |
| Detector Type | Cooled snapshot FPA |
| Resolution | 640 x 512 pixels |
| Pixel Pitch | 15 µm |
| Cooling | Rotary Stirling |
| Cooldown Time | < 8 minutes at 20°C |
| Power Consumption | < 20W steady operation |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Video Output | HDMI 720p, optional SDI or analog |
| Streaming | h.264 via RTSP or UDP, RAW via GigE Vision |
| Control Interfaces | RS232, Ethernet IP |
| Vibration Resistance | 2g operational |
| Shock Resistance | 25g operational |
