Description

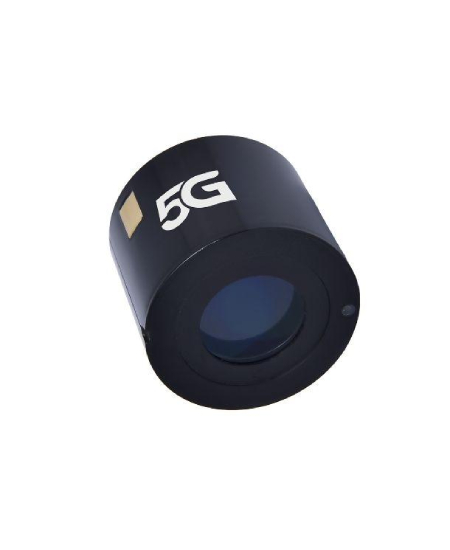

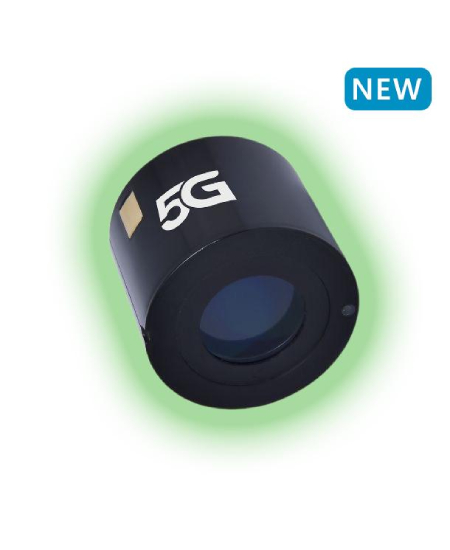

Advanced Performance with Image Intensifier Tube 5G
The Image Intensifier Tube 5G represents a breakthrough in modern night vision technology, delivering exceptional performance for mission-critical applications. Developed by Exosens, this advanced tube is designed to meet the evolving demands of defense and security operations where clarity, speed, and accuracy are essential.
With a minimum Figure of Merit of 2500 and typical performance reaching up to 2800, it ensures superior image sharpness and detail. This high FOM directly enhances operational visibility, allowing users to detect and identify targets at extended ranges with greater confidence.
Enhanced Visibility and Extended Range
One of the key advantages of this is its significantly increased gain, delivering up to 50 percent more brightness compared to conventional intensifiers. This results in clearer and brighter images even in extremely low-light environments such as moonless nights or dense terrain.
Additionally, the tube improves Detection, Recognition, and Identification ranges by up to 35 percent across various night conditions. This enhancement provides users with a decisive edge in surveillance, reconnaissance, and tactical missions.
Precision Imaging and Reliability
The Image Intensifier Tube 5G offers a limiting resolution of up to 82 lp per mm and maintains high resolution even under bright light conditions. Combined with a strong signal-to-noise ratio starting at 30, it ensures crisp and low-noise imagery, reducing visual fatigue and improving decision-making in the field.
Designed for long-term operational use, this tube features an ultra-long lifetime with minimal gain loss over time. Users can rely on consistent performance without frequent replacements, making it a cost-effective and dependable solution.
The availability of both P43 green phosphor and P45 white phosphor options allows flexibility based on user preference and mission requirements.
Technical Specifications
| Parameter | Minimum | Typical | Maximum | Unit |
| Figure of Merit (FOM) | 2500 | 2800 | – | – |
| Signal-to-Noise Ratio | 30 | – | – | – |
| Limiting Resolution | 82 | – | – | lp/mm |
| High Light Resolution (200 lx) | 62 | 64 | – | lp/mm |
| Phosphor Options | P43 / P45 | – | – | – |
