Description

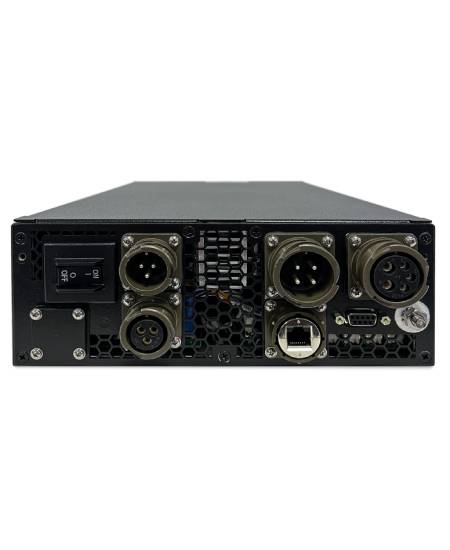

AWB1252 2U Half Rack UPS for Rugged Mission Critical Power
The AWB1252 2U Half Rack UPS is built to provide maximum power in minimal space for mission critical environments. Developed by Acumentrics, this rugged uninterruptible power supply delivers 1250 VA and 1000 watts of continuous output in a compact 2U chassis measuring only 9.4 inches wide and 15 inches deep.
High Power Density
Designed for optimized SWaP, the AWB1252 2U Half Rack UPS uses advanced power conversion technology and high performance digital control. This allows military and industrial teams to deploy reliable power solutions without adding unnecessary bulk or weight. Weighing approximately 20 pounds, it is ideal for portable transit case integration and mobile deployments.
The unit supports both AC and DC inputs across a wide operating range of 80 to 265 VAC and 20 to 32 VDC. With an input frequency range of 47 to 440 Hz, it ensures reliable performance worldwide across land, sea, and air operations.
Lithium Battery Backup
This model integrates lithium iron phosphate battery technology for improved safety, long cycle life, and lightweight energy storage. The internal battery provides approximately 6 minutes of backup at full 1000W load. The hot swappable battery pack allows rapid field replacement, minimizing downtime during tactical operations. Recharging to 90 percent capacity takes only 1.5 hours, helping maintain operational readiness.
Military Certification
Certified to MIL STD 461G for EMI and EMC and MIL STD 810G for environmental durability, the AWB1252 2U Half Rack UPS performs reliably in harsh environments. It also meets standards for airborne, shipboard, and vehicle power applications.
Compatible with compact modules from leading technology providers and designed for flexible transit case integration, the AWB1252 2U Half Rack UPS ensures seamless deployment in defense, ground mobile, and rugged industrial systems.
Technical Specifications
| Specification | Details |
| Product Name | AWB1252 2U Half Rack UPS |
| Manufacturer | Acumentrics |
| Model | Rugged Half Rack UPS |
| Power Rating | 1250 VA |
| Output Power | 1000 W |
| Input Voltage AC | 80 to 265 VAC |
| Input Voltage DC | 20 to 32 VDC |
| Input Frequency | 47 to 440 Hz |
| Output Voltage | 115 to 230 VDC |
| Backup Time | 6 minutes at 1000W |
| Battery Type | Lithium Iron Phosphate |
| Recharge Time | 90 percent in 1.5 hours |
| Form Factor | 2U Half Rack |
| Dimensions | 3.5 x 9.4 x 15 inches |
| Total Weight | 20 lbs |
| Operating Temperature | Minus 20 to plus 50 degrees Celsius |
| EMI Certification | MIL STD 461G |
| Environmental Standard | MIL STD 810G |
| Application Industries | Military, Ground Mobile, Rugged Industrial |
