amond Systems’ family of NVIDIA embedded solutions delivers cost-effective, rugged and I/O-rich AI-at-the-edge computing solutions based on NVIDIA Jetson Nano, NX, and AGX Xavier™ modules. The family includes carrier boards as well as finished systems with a Linux OS loaded and ready for deployment.
Diamond is the first and only NVIDIA solution provider to marry the world of Nvidia Jetson with the world of rugged PCIe/104 I/O expansion, enabling the creation of next-generation high performance, I/O-intensive, rugged embedded systems.
Diamond’s NVIDIA solutions target a range of industrial and military applications, with a focus on harsh environments (such as vehicles and other outdoor applications) and I/O-intensive applications.
Custom Jetson carrier and system design and manufacturing services are available using our extensive proven technology library and global design / manufacturing network. Contact us to learn how we can fulfill your unique requirements.
| Product | Jetson Module | Camera | I/O | DAQ | Expansion / Storage | Size |
 Floyd |
Nano Xavier NX TX2 NX |
3x CSI 4-lane | 2x HDMI, 2x serial, 1x USB 3.1, 2x USB 2.0, 2x GbE with PoE option, 1x CAN | 8 GPIO 3.3/5V | M.2 2280 NVMe, PCIe Minicard | 5.8×3.0” / 147x76mm |
 JetBox Floyd |
Nano Xavier NX TX2 NX |
N/A | 2x HDMI, 2x serial, 1x USB 3.1, 2x USB 2.0, 2x GbE with PoE option, 1x CAN | 8 GPIO 3.3/5V | M.2 2280 NVMe, PCIe Minicard | 6.9×3.6×2.1” / 175x91x53mm |
 Floyd-SC |
Nano Xavier NX TX2 NX |
3x CSI 2-lane | HDMI, DP, 2x serial, 1x USB 3.1, 2x USB 2.0, 2x GbE, CAN | 16 GPIO 3.3/5V | M.2 2242/2280 NVMe, daughterboard expansion connector | 4.3×3.3” / 110x85mm |
 Jetbox Floyd-SC |
Nano, NX, TX2 NX | 1x Gbe, 1x USB 3.0, 2x USB 2.0, 2x serial, 1x HDMI | 8 GPIO 3.3V/5V with screw terminals | Module built-in eMMC, M.2 2280 NVME | 124mmW x 99mmD x 56mmH / 4.9″ x 3.9″ x 2.2″ | |
 Stevie |
AGX Xavier | 8x CSI 2-lane | 2x HDMI, 4x serial, 2x USB 3.1, 2x USB 2.0, 2x GbE, 2x CAN | 6 A/D, 2 D/A, 13 GPIO 3.3V | M.2 2280 NVMe, PCIe/USB Minicard | 3.62×4.17” / 92x106mm |
 JetBox Stevie |
AGX Xavier | N/A | 2x HDMI, 2-4x serial, 2x USB 3.1, 2x USB 2.0, 2x GbE, 0-2x CAN | N/A | M.2 2280 NVMe, PCIe/USB Minicard | 5.9×4.4×2.8” / 150x112x72mm |

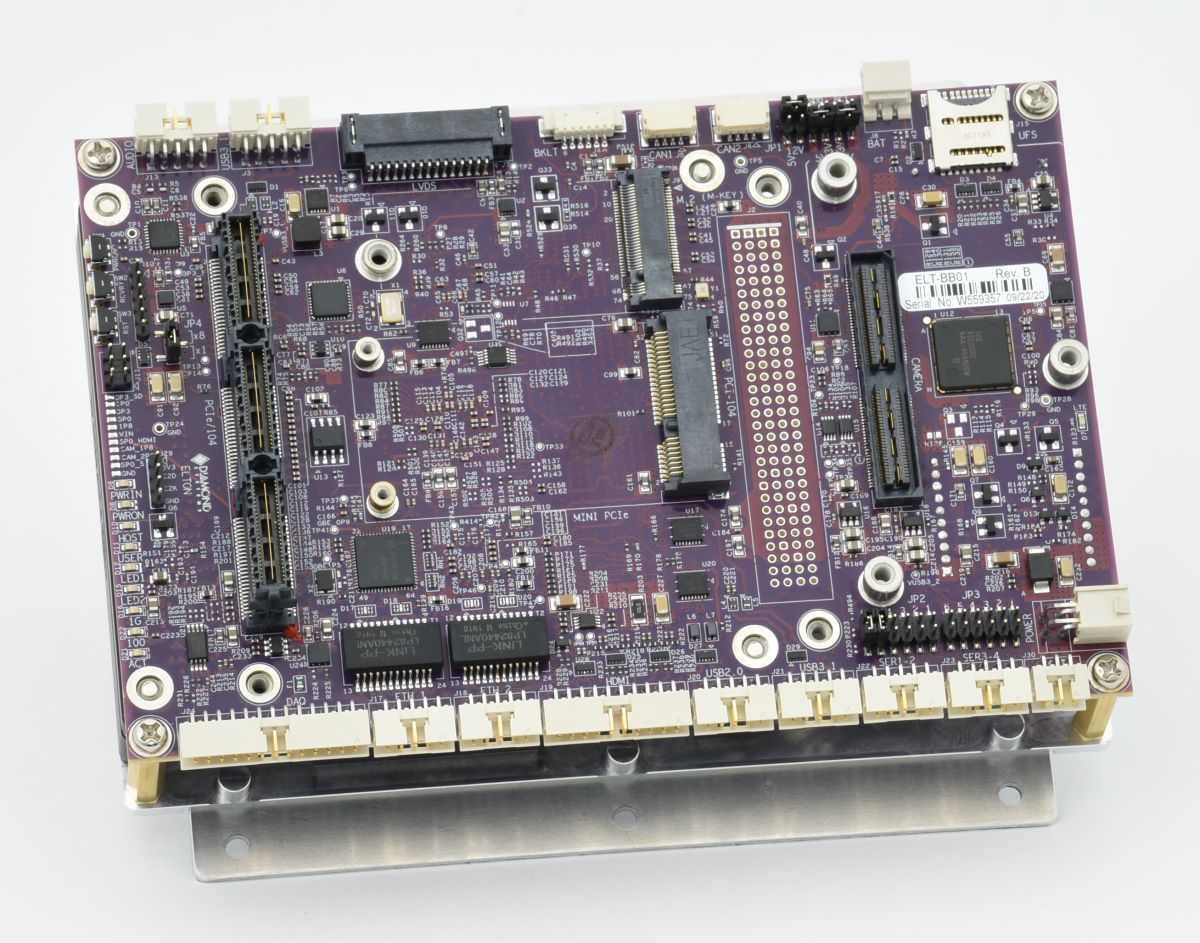

 Elton |
AGX Xavier | 8x CSI 2-lane | HDMI, LVDS, 4x serial, 2x USB 3.1, 2x USB 2.0, 2x GbE, 2x CAN | 6 A/D, 2 D/A, 13 GPIO 3.3V | M.2 2242 NVMe, SkyWire modem,, PCIe/104 x8 and x1 | 5.75×4.00” / 146x102mm |
 Ziggy |
TX2, TX2i | 1x CSI 4 lanes | 1x HDMI, 1x Gigabit Ethernet, 1x USB 3.0 Type A + 1x USB 2.0 Type A | 6 ADC, 2 DAC, 13 DIO | SD card | 3.43×1.97 / 50x87mm |
