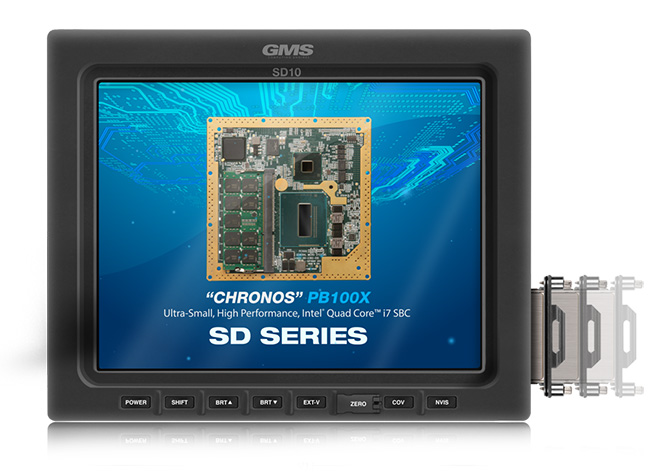

GMS SD10 Rugged, Standard Definition Smart Display with Removable Drive

0 out of 5

GMS SD10 Rugged, Standard Definition Smart Display with Removable Drive

SKU: SD10. Categories: , , , .
Request a Quote

Description

Product Specifications

Display Features
– Ultra rugged 10.4” diagonal screen in 4:3 format with 1024×768 native screen resolution
– Full daylight viewable screen with optional Night Vision Imaging System (NVIS)
– Ultra rugged “boot-kick” glass for a virtually unbreakable screen (optional)
– Ultra small and lightweight frame, less than 2 inches thick!
– Anti-glare (AG) and anti-reflective (AR) coating for crisp display in any light
– Resistive touchscreen with glove and/or stylus operation with EMI shielding

– Up to 16 bezel keys for screen control and special functions (customizable and optional)

Computing Features
– Up to 2.4GHz Intel® Quad Core™ i7 Haswell processor with 6MB of L2 Cache
– Up to 32GB of 1600MHz DDR3 memory with ECC
– Up to 1TB of fixed SSD for OS boot with secure erase (optional)

– One fully sealed removable nDrive™ up to 1TB with secure erase (optional)

System I/O
– Two Gigabit or two 10Gigabit (optional) Ethernet ports with TCP/IP Offloading Engine (TOE)
– One USB 3.0, one USB 2.0 port and two COM ports with RS-232/422/485 options
– Two SAM™ sites for custom I/O (MIL-STD-1553, Wi-Fi/BT, GPS, CANBus, etc.)
– Full HD-Audio support with onboard 1W mono amplifier

– One VGA output or DVI video input selected via bezel key

Additional Features
– Intel® Virtualization Technology (VT-x/VT-d2) and Trusted Execution Technology (TXT)
– Trusted Platform Module (TPM) for secure operation (optional)
– CPU temperature and voltage monitoring for safe operation
– Power, Blackout, Zero, Brightness, NVIS, Video Source, and Shift bezel keys
– Fully compliant to MIL-STD 810G, MIL-STD-1275D, MIL-S-901D, DO-160D, MIL-STD-461E and IP66/67
– Operates up to -20°C to +80°C (no heater) or up to -40°C to +80°C (with heater)
– Available in ruggedization levels R3-R5

– 10.50 x 8.50 x 1.75

Application

The RuggedView™ is designed to provide the ultimate rugged computer with an ultra-rugged display for defense and industrial applications. The RuggedView™ is ideal for outdoor applications where it may be fully exposed to rain, sun, dirt, and radiation. The RuggedView™ SD10 may be ordered from the factory with operating systems such as Windows®, Linux® or VMware® pre-installed. The SD10 is fully compliant to MIL-STD 810G, MIL-STD-1275D, MIL-S-901D, DO-160D, MIL-STD-461E and IP66/67 optionally.
