Diamond Zeta Miniature COM-Based SBC

0 out of 5

Ultra-Small Solution with Integrated DAQ using COM Express Mini Type 10 CPU Modules

  • Ideal solution for airborne and other vehicle applications
  • Interchangeable industry standard COMs support long product lifecycles
  • 2x Gigabit Ethernet ports
  • 4x RS-232/422/485 serial ports
  • 4x USB 2.0 ports + 1x USB 3.0 port
  • VGA and single-channel LVDS display
  • PCIe MiniCard / mSATA socket
  • Micro SD socket
  • 16 single-ended / 8 differential analog inputs
  • 16-bit A/D resolution
  • 100KHz max A/D sample rate
  • 4 16-bit analog outputs
  • 27 digital I/O configurable as counter/timers and PWM
  • Expansion connector with PCIe, SATA and audio interfaces
  • 6-36VDC input range
  • COM Express Mini form factor: 3.3 x 2.2 in / 84 x 55mm
  • -40°C to +85°C (-40°F to +185°F)
  • Bottom-mounted heat spreader cooling



Request a Quote

Description

Diamond Zeta Miniature COM-Based SBC

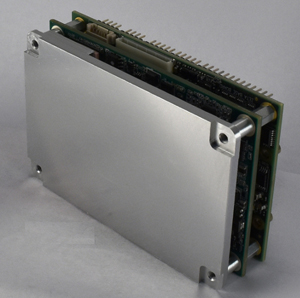

Zeta Miniature COM-Based SBC

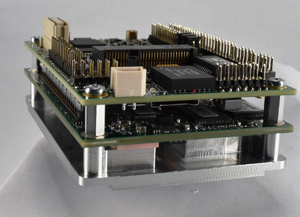

Complete Zeta SBC
Zeta Miniature COM-Based SBC

Zeta Carrier Board top, with data acquisition
 Click images for enlargement

Description

The Zeta COM Express SBC family of ultra-small embedded computer boards combines a COM Express Mini CPU module mounted on a same-size carrier board to create a complete embedded PC. Designed in the COM Express Mini Type 10 form factor (84 x 55mm/ 3.3 x 2.2 in), Zeta provides an ultra-compact, industry-standard form factor solution. Zeta Miniature COM-Based SBC

3 key components pre-assembled:

A Computer on Module (COM) providing the core CPU functionality
A carrier board providing the I/O transceivers and connectors, power supplies, and expansion sockets
A heat spreader with a flat exterior surface for direct mounting and heat transfer to the system enclosure

This layered architecture offers the highest functional density for any given footprint. As a comparison, Zeta offers functionality and performance equivalent to Diamond’s top-selling Aries SBC at just 40% of the size.

Zeta currently supports three processor options:

Intel Bay Trail E3825 1.33GHz Dual Core CPU with 2GB RAM
Apollo Lake E3940 1.6GHz quad core CPU with 4GB RAM
Apollo Lake N4200 1.1GHz (burstable to 2.5GHz) Quad Core CPU with 8GB RAM

Zeta’s small size and high feature density make it an ideal choice for mobile applications. It stands ready to meet the challenges of these environments with a wide range 6-36VDC input voltage, a -40 to +85°C operating temperature range, and fanless heat spreader cooling (heat sink options are available).

Benefits of COM-based SBCs
The use of interchangeable industry-standard CPU modules on Zeta offers two important system designer benefits:

Performance scalability: One can design multiple applications based on a consistent hardware platform and select the CPU that best fits the price / performance / power requirements of each one. In addition, as time goes on and your application needs more horsepower to support increased functionality, you can simply upgrade to a newer CPU with minimal to no redesign effort. Zeta Miniature COM-Based SBC
Long product life: The majority of today’s x86 embedded processors offer limited lifecycles of 5-7 years, so any long-life product dependent on an x86 single-board computer (SBC) is likely to require redesign sometime during its lifecycle. Using industry-standard COMs lets you easily migrate to a new generation CPU module in the exact same form factor and containing the same feature set, with virtually no hardware or physical redesign efforts. Zeta is ideal for long-life applications such as Military, Medical, and Transportation. Zeta Miniature COM-Based SBC

Block Diagram

Conduction Cooling

The bottom side heat spreader on Zeta provides the most efficient cooling solution in a size-optimized design, enabling Zeta to run reliably at up to 85ºC. The heat spreader conducts heat directly to the system chassis for maximum heat dissipation to the ambient environment and minimum radiation into the enclosure interior. By reducing the interior temperature, Zeta helps to improve overall system reliability. In addition the bottom side heat spreader leaves the entire top side of the board free for expansion and simplifies system configuration and maintenance.

Zeta Miniature COM-Based SBC Zeta Miniature COM-Based SBC

 Available Models

Zeta is available with three different processor options. Each CPU may be paired with both the digital I/O and full analog/digital I/O baseboard.

Model Processor /Speed / Memory
ZETA-E3825-2GA E3825 1.33GHz CPU, 2GB RAM Data acquisition circuit
ZETA-E3825-2GD E3825 1.33GHz CPU, 2GB RAM Digital I/O circuit
ZETA-E3940-4GA E3940 1.6GHz CPU, 4GB RAM Data acquisition circuit
ZETA-E3940-4GD E3940 1.6GHz CPU, 4GB RAM Digital I/O circuit
ZETA-N4200-8GA N4200 1.1GHz CPU, 8GB RAM Data acquisition circuit
ZETA-N4200-8GD N4200 1.1GHz CPU, 8GB RAM Digital I/O circuit

Development Support

Operating system support is available for Linux (Ubuntu 16.04), and Windows 10 IoT. Drivers and instructions are available for free download on the Diamond website. Software development kits / board support packages are available as well and consist of the selected operating system installed and pre-configured on a solid state flashdisk (SSD).

Development Kits

Zeta is available in a complete development kit that includes a full set of I/O cables and the selected SDK. Simply install the pre-configured flashdisk, attach cables / keyboard / mouse / monitor, power up, and the system is ready to run.

Cable kits

The Zeta cable kit includes cables for all I/O features on Zeta except LCD. Details are provided below. Individual cables are available as a special order item; minimum order quantities and leadtimes may apply.

An LCD / backlight cable kit is available for specific displays used in our manufacturing environment. Customers may purchase this cable kit as a starting point and modify the LCD ends to support their specific display. Zeta Miniature COM-Based SBC

Zeta Cable Kit



No. Qty Cable Description
1 2 6981082 Dual USB 2.0 cable
2 2 6981075 Dual Serial cable
3 1 6980524 External Battery cable
4 2 6981080 Ethernet cable
5-6 1 6980516 Analog I/O and Digital I/O cables
7 1 6981084 VGA cable
8 1 6980100 Dual USB 3.0 cable
9 1 6981070 Power input cable

The Zeta cable kit includes cables for all I/O connectors.

 Specifications

Core CPU Features
Processor/memory options Intel Bay Trail E3825 1.33GHz Dual Core CPU with 2GB RAM
  Apollo Lake E3940 1.6GHz quad core CPU with 4GB RAM
  Apollo Lake N4200 1.1GHz (burstable to 2.5GHz) Quad Core CPU with 8GB RAM
System I/O Interfaces
Serial Ports 4 RS-232/422/485 ports
USB 1x USB 3.0; 4 x USB 2.0
Networking 2 Gigabit Ethernet ports
Keyboard/Mouse USB keyboard/mouse
Display VGA and LVDS
Audio HDA audio on expansion connector
Watchdog timer Reset mode; Programmable interval 0-255 seconds
Mass Storage 1 Mini PCIe /mSATA socket; 1 Micro-SD socket
Data Acquisition Features
Analog Inputs 16 Single-Ended / 8 Differential voltage inputs
Input ranges +/-10V, +/-5V, 0-10V, 0-5V
Maximum Sample Rate 100,000 samples/sec aggregate
On-board FIFO 2048 samples, programmable threshold
DAQ Calibration No calibration required
Analog Outputs 4 16-bit voltage outputs
Output ranges 0-5V, 0-2.5V programmable
A Model Digital I/O 27 lines independently programmable
D Model Digital I/O 16 lines independently programmable for input/output
PWM 4 24-bit pulse width modulators
Counter / timers 8 32-bit counter/timers
Logic signal voltage levels 3.3V/5V logic levels jumper-selectable
Expansion Buses
MiniCard 1 socket combining PCIe x1, mSATA, and USB 2.0 interfaces
SATA 1 port on expansion connector
PCIe 2x PCIe x1 links on expansion connector
USB 1 USB 2.0 port on expansion connector
Physical and Mechanical
Power input 6V to 36V option
Cooling Heat spreader standard, no fan
Power Consumption TBD
Operating Temperature -40ºC to +85ºC (-40ºF to +185ºF)
Form Factor COM Express Mini Type 10
Dimensions 84 x 55mm / 3.3 x 2.2in
Weight 1.30 oz baseboard; TBD COM module; TBD SBC complete
RoHS Compliant

  Get an online quote

Zeta Miniature COM-Based SBC
available models:
ZETA-E3825-2GA
E3825 1.33GHz CPU, 2GB RAM Data acquisition circuit
ZETA-E3825-2GD
E3825 1.33GHz CPU, 2GB RAM Digital I/O circuit
ZETA-E3940-4GA
E3940 1.6GHz CPU, 4GB RAM Data acquisition circuit
ZETA-E3940-4GD
E3940 1.6GHz CPU, 4GB RAM Digital I/O circuit
ZETA-N4200-8GA
N4200 1.1GHz CPU, 8GB RAM Data acquisition circuit
ZETA-N4200-8GD
N4200 1.1GHz CPU, 8GB RAM Digital I/O circuit

Please click for an online quote request.Please click for an online quote request.
